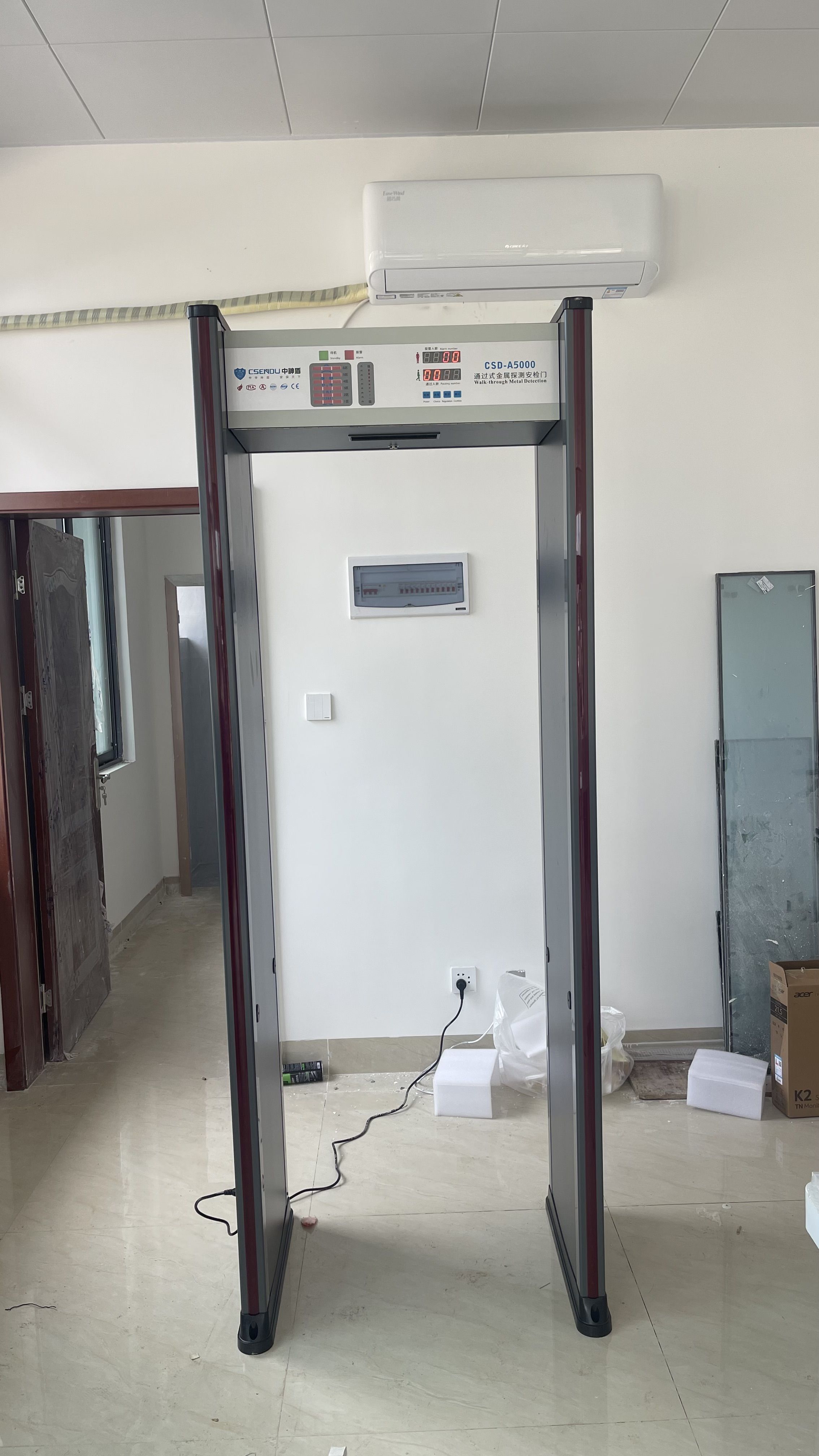

CSD-A5000高檔LED型安檢門
性能介紹
CSD-A5000高檔LED型安檢門采用電兼容雙探測源技術制造，防震設計，具有探測精度高，抗干擾能力極強、計數準確、穩定性好等特點。當人體攜帶金屬物品通過時能產生報警的裝置，能準確探測到人身上或手體包箱中攜帶的金屬物品或含有金屬的物品，如各種管制刀具、武器、金屬制品、電子產品及其他含有金屬的物品等，用來進行安全檢查、防偷竊檢查的一種有效工具,主要應用于政府機關、公安機關、檢察院、法院、監獄、看守所、海關、機場、車站、體育場館、會展場館、娛樂場所、大型集會等場所以及五金、電子、首飾、軍工、造幣等工廠或企業！
性能介紹：
○防震設計，門體采用PVC高級合成材料工藝制造，且帶有防水膠套，具有防水防火、防腐等特點。門邊均用鋁合金邊框結構，使門體更加穩固！
○6個相互重疊的金屬探測區域，采用當前數字脈沖技術，交互式發射和接收，準確判定金屬物品的位置
○主機箱面板自帶LED燈光顯示模塊，可直觀看到人體攜帶藏匿違禁物品相應的位置。
○18區位顯示：產品分成18個防區，兩邊門柱LED燈光顯示，一目了然，可疑物體能在每個區域準確顯示。
○可以使用遙控器對參數進行控制。參數可設密碼保護，使非授權人員無法操作。
○全自動線圈纏繞及主機的貼片生產能更精確的達到探測效果，具有連續工作特點。
○每個探測區域具備100級靈敏程序可以任意調節，為滿足客戶所探測不同的違禁物品，可根據實際使用情況預先設定金屬物品的可能部位及體積、重量、大小進行適當的靈敏度調節，排除皮帶扣、鑰匙、首飾、硬幣等物品的誤報，最高靈敏度可探測到一枚回形針大小的金屬。
○復合式電路設計，信號頻率可自由調節，采用先進散射型紅外掃描，迅速捕捉感應信號，且并網安裝多臺探測門共同工作互不干擾。
○強大的DSP信號處理數字過濾系統，采用當今世界最先進的磁電兼容技術形成極佳的抗電磁干擾能力和較強的耐觸摸和碰撞能力。
○內置自我診斷程序，開機自檢，出錯自動提示并能夠自動測量和顯示周圍環境的干擾情況。
○自動統計通過人數與報警次數，精確率100%。
○密碼保護，只允許專管人員操作，，防止非授權人改變參數，無需維護、無需定期校準。
○符合國際安全標準，對人體內的心臟起博器、孕婦、磁性軟盤、錄象帶、磁帶、膠卷記錄資料等無負作用。
技術標準：
○電器參照EN60950安全標準執行。
○輻射參照EN50081-1標準執行。
○抗干擾參照EN50082-1標準執行。
○嚴格執行現行通過式金屬探測器國家標準。
○全面通過ISO9001：2000質量管理體系認證。
○全面通過歐盟CE認證。
三：技術參數：
○外接電源：215V - 230V 50/60Hz
○功耗：35W
○工作環境：-20℃─45℃
○運輸全重：約95kg
○工作頻率：根據安裝環境自行調節
○整機重量：約90kg
○外形尺寸：(mm)2200(高) x 820(寬) x 500(深)
○通道尺寸：(mm)2000(高) x 700(寬) x 500(深)
CSD-A5000 ( LED ) high-grade metal detection door
英文說明：
English description
Performance introduction
CSD-A5000 metal detector gate ( security doors) using the world's most advanced electromagnetic compatible dual detecting technology, the original global earthquake design, has high detection precision, anti-jamming capability is extremely strong, accurate counting, good stability, long distance remote control switch machine etc.. When the body carrying metal articles by can produce alarm device, can accurately detect human body or hand body package box with metal objects containing metal items, such as various control tools, weapons, metal products, electronic products and other metal containing items, used to conduct safety inspection, check anti-theft an effective tool, mainly used in government agencies, public security organs, procuratorate, court, prisons, detention, the customs, airport, station, gymnasium, exhibition venues, entertainment venues, large gatherings and other places and hardware, electronics, jewelry, military, mint and other factories or enterprises!
Performance introduction:
The original global seismic design, the door body adopts the PVC advanced synthetic material manufacturing process, and a rubber sleeve, with waterproof and fireproof, anticorrosive etc.. The door with aluminum alloy frame structure, so that the door body is more stable!
6 overlapping metal detection area, using the digital pulse technology, interactive transmitting and receiving, to accurately determine the metal object position, mainframe panel with LED light display module, can directly see the body to carry concealed contraband corresponding position.
Six: location display products is divided into six zones, four post LED light display, stick out a mile, suspicious objects in each region accurately display.
You can use remote control to control parameters. Parameters can be password protected, so that unauthorized personnel to operate.
Automatic coil winding and the host chip production can more accurately achieve the detection effect, with continuous working characteristic.
Each detection area with 100 sensitive procedures can be arbitrary regulation, to meet customer different contraband detection, according to the actual use of preset metal objects may position and volume, weight, size appropriate sensitivity adjustment, exclude belt buckle, key, jewelry, coins and other items of false positives, the highest sensitivity can detect a size of the metal clip.
Composite circuit design, signal frequency can be adjusted freely, the use of advanced dispersive infrared scanning, quickly capturing the induction signal, and the grid installation of multiple detection door work without mutual interference.
Strong DSP signal processing digital filtering system, using the world's most advanced electromagnetic compatibility technology formed a very good electromagnetic interference resistance ability and strong resistance to touch and impact.
Built in self test, diagnostic procedures, error automatically prompts and can automatically measure and display the ambient interference.
Automatically by the number of statistics and the alarm time, the accurate rate of 100%.
Password protection, allowing only in charge of personnel, operating, preventing unauthorized people changed parameters, no need of maintenance, no need of regular calibration.
For RS-485 communication interface with the computer networking, monitoring, statistical usage, and can be configured according to user requirements remote control device.
In compliance with international safety standards, the body of the cardiac pacemaker, pregnant women, floppy disk, magnetic tape, tape, film recording data and no negative effects.
Technical standard:
Electrical reference EN60950 safety standards.
Radiation according to EN50081-1 standards.
Anti interference according to EN50082-1 standards.
Strict enforcement of existing national standards through the metal detector.
Through a comprehensive ISO9001 : 2000 quality management system certification.
All through the European CE certification.
Three: technical parameters:
External power: 215V - 230V 50 / 60Hz
Power: 35W
Work environment: - 20 DEG C to 45 DEG C.
Transport the whole weight of about 95kg:
Operating frequency: according to the installation of environmental self-regulation
Machine weight: About 90kg
Dimensions: ( mm ) 2200 ( high ) x 820 ( W) x 500 ( deep )
Channel size: ( mm ) 2000 ( high ) x 700 ( W) x 500 ( deep )
Dimensions: ( mm ) 2200 ( high ) x 820 ( W) x 610 ( deep )
Channel size: ( mm ) 2000 ( high ) x 700 ( W) x 610 ( deep )
