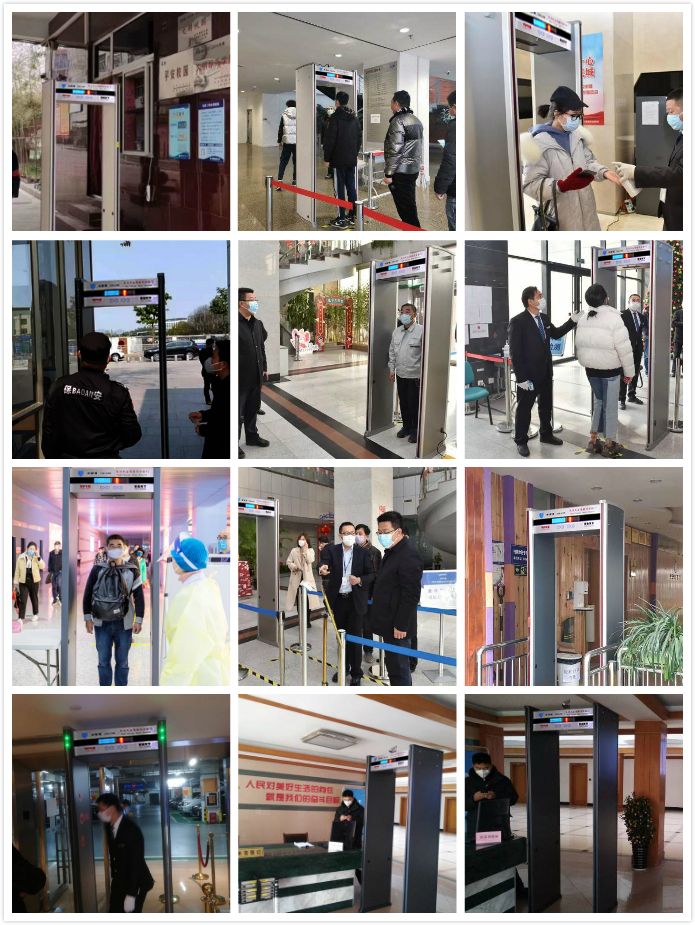

CSD-A9500中神盾人體測溫安檢門采用磁電兼容探測源技術制造，測量人體額頭或手腕及手掌表面溫度，測溫感應光學組件將人體額頭或手腕及手掌表面溫度發射和反射的能量匯集到傳感器上，通過電子組件將此信息轉化成溫度讀數并顯示在顯示面板上，當溫度讀數超過高溫報警值時，儀器會發出報警聲，同時紅色報警燈點亮。是現代醫學中的非常重要的儀器。防震設計，具有探測精度高，抗干擾能力極強、計數準確、穩定性好等特點。中神盾人體測溫安檢門主要用于于出入境口岸、機場、車站、碼頭、醫院、政府機關、工廠、學校、賓館和寫字樓等公共場所人體溫度的檢測，便于篩檢具有發熱癥狀的病人以減少傳染和疫情蔓延。

產品優勢

無感測溫：對通過安檢門的人員進行溫度監測，測試距離：0.05-0.3米,測試高度：不低于1.5米

人體溫度篩查：采用比利時進口Melexis原裝高精度醫療遠距離測溫芯片，檢測距離遠、精度高、質量性能穩定，全方位對通行人員進行體溫掃描篩查.

溫度誤差: 0.1℃-0.3℃

測溫語音提示：語音播報 “體溫正?！薄罢垙筒轶w溫”

超高檢測靈敏度: 可檢測到半個回形針大小的金屬，不會漏報和串報.

獨創飛物報警功能: 金屬物體從門中間拋過也會準確報警.

智能分辨: 能區分鐵磁質和非鐵磁質金屬物品.

超低探測高度: 離地2CM以上的金屬物體進入檢測區域均可報警.

多區位報警功能: 人體不同位置的多個金屬通過安檢門時同時報警，并可以指示多個金屬的位置.

開機自診斷功能: 開機時對系統進行自檢，并顯示檢測結果.

多區域獨立探測: 12個獨立探測區域，每個區域1000級靈敏度等級調節.

模塊化組件設計: 運輸、維護方便快捷.

產品特點

探測精度：最高靈敏度在門正中間檢測到一根大頭針（或1/2）回形針，不會漏報和串報.可在排除皮帶扣、皮鞋、文胸等物品的影響檢測到150克以上的銅、鋁、鋅等貴金屬或管制刀具和槍支.

為滿足客戶所探測不同的違禁物品,可根據實際使用情況預先設定金屬物品的可能部位及體積、重量、大小進行適當的靈敏度調節,排除皮帶扣、鑰匙、首飾、硬幣等物品的誤報,最高靈敏度可探測到一枚回形針大小的金屬。

抗干擾設計:強大的 DSP 信號處理數字過濾系統,采用當今世界最先進的磁電兼容技術形成極佳的抗電磁干擾能力和較強的耐觸摸和碰撞能力。根據周圍環境，開機自動設置頻率避開干擾，多臺門并排工作時相互靠攏，對探測性能也無明顯影響.

區位顯示：產品分成12防區，可疑物能在每個區域準確顯示.

頻率設置：可自動設11種頻率，不同頻率設定不同鈴聲，也可進行手動設頻，7000-8999Hz任意設置.

靈敏度調節: 靈敏度可以根據需要調整，共有1000級靈敏度.

統計人數：雙側對射紅外可以準確檢測到通過人數和報警人數.

四側定位燈：門體四側均帶有LED燈，能直觀地通過定位燈顯示違禁物品所在區域，視角可達360°.

聲光報警: 9款可選擇報警聲音，每款均有8級音調可調，報警時間長短可調.

面板顯示:采用液晶（LCD）顯示，中文、英文菜單相互切換.

貼片生產：全自動線圈纏繞及主機的貼片生產能更精確的達到探測效果,具有連續工作特點。

防震設計：全球獨創防震設計，在刮風或人為晃動下不會誤報.

一鍵設置：內置智能芯片，儲存多種場所推薦探測靈敏度設定值，方便用戶快速選擇。

門體材質：外表采用PVC,與進口品牌材質完全相同，美觀、大方、防火、防腐蝕、防潮和防撞，不變形.

遙控操作：使用遙控器行設置，參數可以設密碼保護，非授權人員無法進行操作.

網絡管理：預留通訊接口，可以與電腦、攝像頭、三軋輥等連接，監控、統計探測情況，調整安檢門參數.

安全保護: 符合國際安全標準，對心臟起博器佩帶者、孕婦、磁性介質等無害.

技術標準

全面通過CE、FCC、RoHS認證

輻射參照EN50081-1標準執行；

抗干擾參照EN50082-1標準執行；

通過ISO9001:2008質量管理體系認證；

通過ISO14001環境管理體系認證；

通過OHSAS職業健康安全管理體系認證；

嚴格執行GB15210-2003通過式金屬探測器國家標準.

基本參數

運輸重量：約70 kg

功耗：<15W

工作溫度：-40℃~80℃

工作濕度：95%,無冷凝

外接電源：187V~242V，50/60HZ

工作頻率： 根據安裝環境自行調節

外形尺寸：（mm）2220(高)×820(寬)×500(深)

通道尺寸：（mm）2000(高)×700(寬)×500(深)

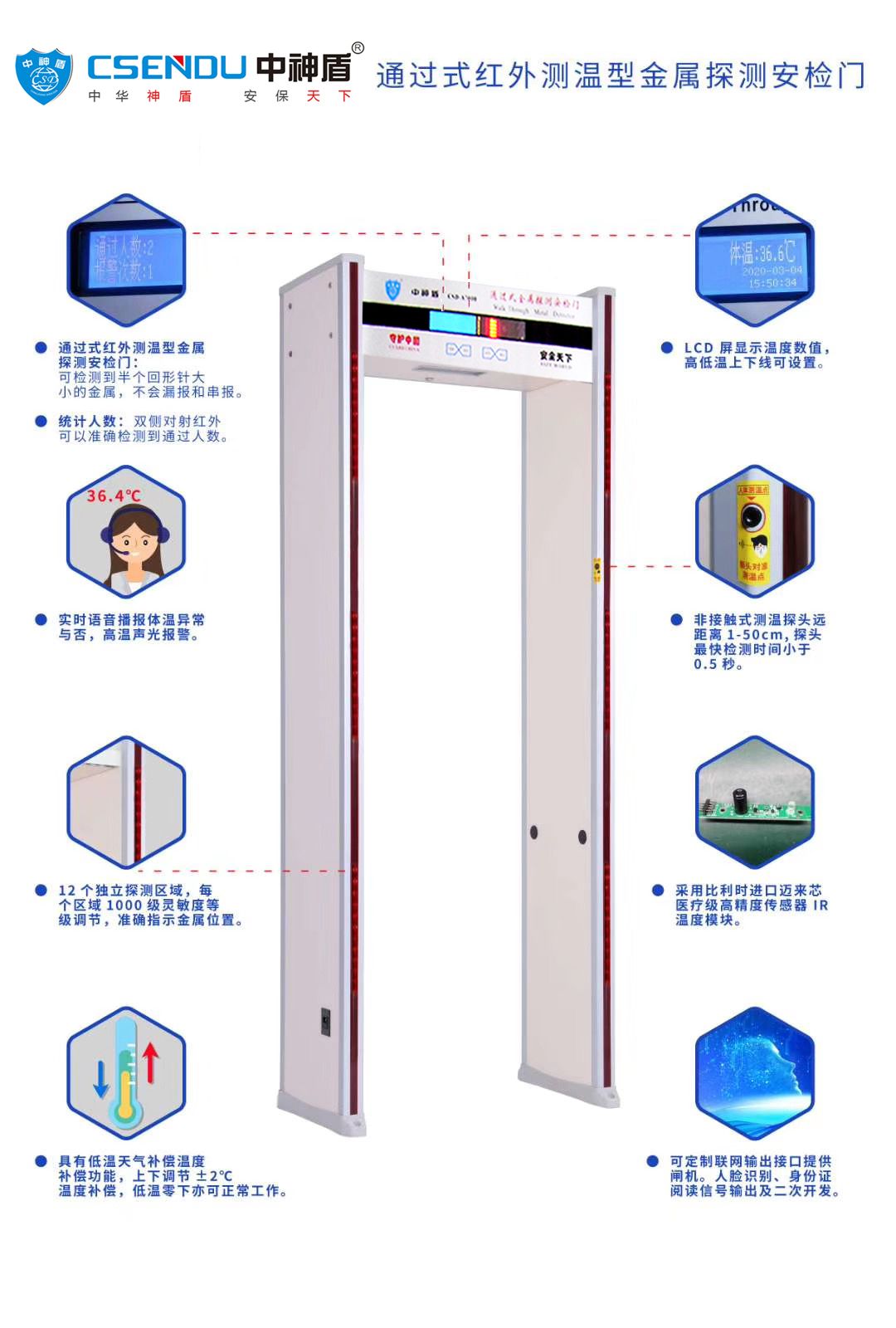

CSD-A9500 temperature measurement walk through metal detector

CSD-A9500 temperature measurement walk through metal detector: The infrared temperature measurement is integrated with the security gate of metal detection. Before passing the metal security check, the infrared body temperature measurement is carried out first, and the sound alarm indicates abnormal body temperature, effectively preventing the spread of scale diseases;

Adopts international advanced electromagnetic compatibility design and shock resistant design, has a high sensitivity, strong anti-interference ability and aseismatic ability, suitable for controlled knives and guns and other dangerous goods safety inspection, widely used in prisons, courts, schools, hospitals, electronics companies, port, the passenger, exhibition halls, convention centre, major celebrations, concerts and other important places.

Non-inductive temperature measurement: Temperature monitoring can be conducted on the personnel passing through the security gate. Test distance: 0.05-0.3 m, test height: not less than 1.5 m.

Human temperature screening: The built-in high-precision micro-24-hour dynamic infrared temperature monitor provides all-directional temperature scanning and screening for passers.

High-end parts: Melexis original medical infrared detector imported from Belgium is adopted, with long detection distance, high precision and stable quality performance, which is highly configured in China.

Ultra-high detection sensitivity: Can detect the size of half a paper clip of metal, no leakage and string.

Display mode: liquid screen display

Original flight alarm function: Throwing a metal object through the middle of a door also gives an accurate warning.

Intelligent resolution: Able to distinguish ferromagnetic and non-ferromagnetic metal objects.

Ultra low sounding altitude: Any metal object more than 2CM above the ground entering the detection area can alarm

Multi zones alarm function: When a plurality of metals in different positions of the human body pass through the security gate, the alarm is raised simultaneously and the position of the plurality of metals can be indicated.

Metal size display: The intensity indicator will display the amount of metal when the alarm is given.

Startup self-diagnosis function: Self-check the system and display the test results.

Modular component design: Convenient transportation and maintenance.

Sensitivity of detection: The highest sensitivity detected a one RMB coin in the middle of the door, which would not be misreported or misreported. It could detect precious metals such as copper, aluminum and zinc above 150 grams, or controlled knives and guns, excluding the influence of belt buckles, leather shoes and bras.

Anti-interference design: According to the surrounding environment, the starting frequency is automatically set to avoid interference, and when multiple doors work side by side, they are close to each other, which has no significant impact on the detection performance.

Frequency set: 11 kinds of frequencies can be set automatically, and different tones can be set at different frequencies. Frequency can also be set manually.

Sensitivity adjustable: Sensitivity can be adjusted as needed, a total of 1999 sensitivity.

Passenger count: Bilateral contraption infrared can accurately detect the number of people passing through and alarm number.

Four sides alarm bars: Two sides of the door body are equipped with LED lights, which can visually display the area where prohibited items are located by positioning lights.

Sound-light alarm: 9 types of alarm sound can be selected, each of which has an 8-level adjustable tone and an adjustable alarm time.

Panel design: LED display, Chinese and English panel switch.

Shockproof design: The world's original seismic design, in the wind or artificial shaking under the false alarm.

One key set: The built-in smart chip can store the set value of detection sensitivity recommended by a variety of places, making it convenient for users to choose quickly.

Frame materiel: PVC appearance, and imported brand material is completely the same, beautiful, generous, fire, corrosion, moisture and anti - collision, deformation.

Remote control: Use the remote control to set the parameters. The parameters can be password protected, which can’t be operated by unauthorized personnel.

Network management: Reserved communication interface, can be connected with computer, camera, three rollers, monitoring, statistical detection, adjust the security gate parameters.

Safety protection: comply with international safety standards, it is harmless to heart pacemaker wearers, pregnant women, magnetic media, etc.

Through the European Union CE, FCC, RoHS certification;

Radiation shall be carried out in accordance with EN50081-1;

Anti-interference shall be implemented according to EN50082-1 standard;

Passed ISO 9001:2008 Quality Management System certification;

Passed ISO 14001 Environment Management System Certification;
